MikroTik Routers and Wireless - Products: RB3011UiAS-RM

The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.

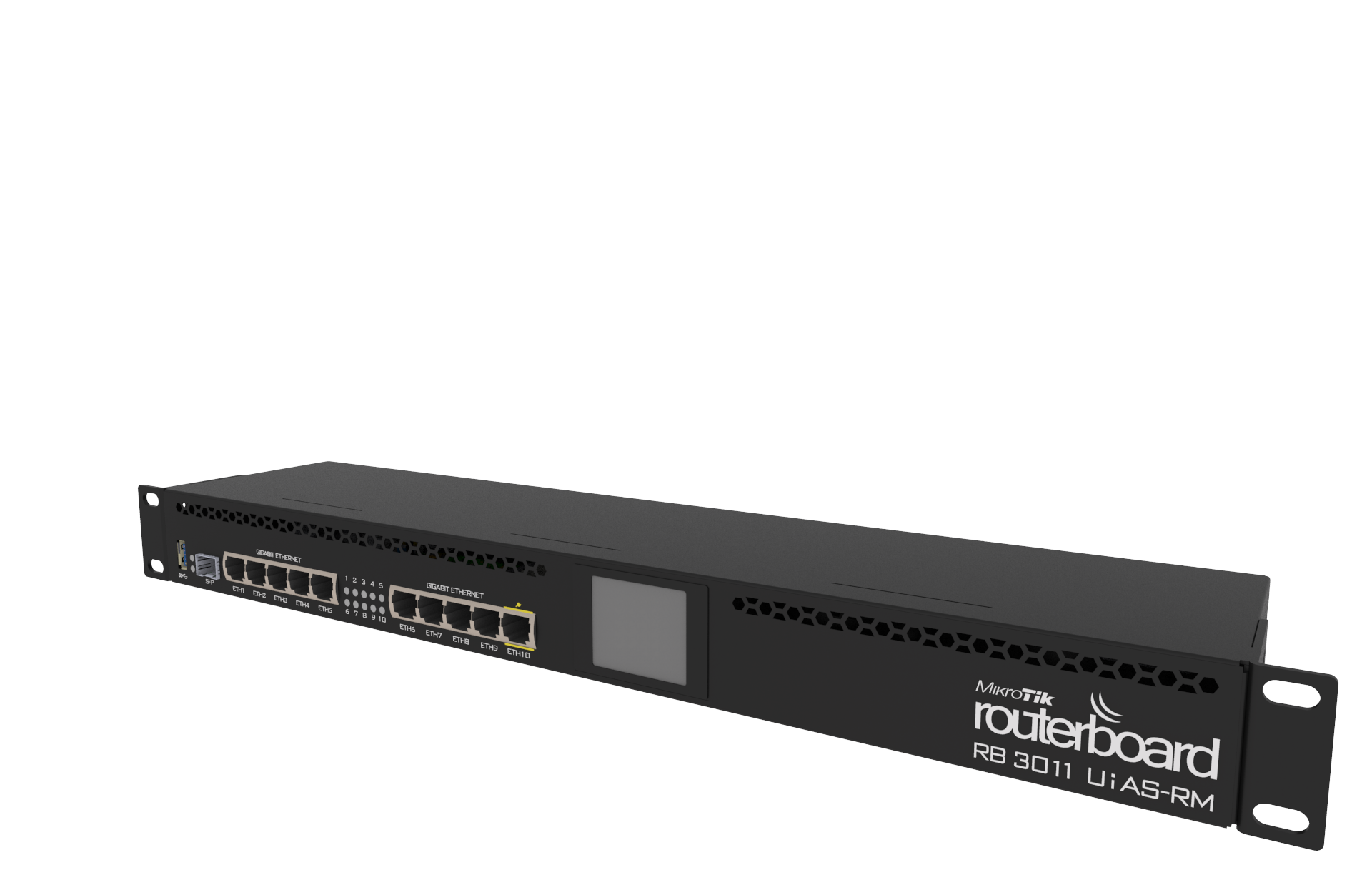

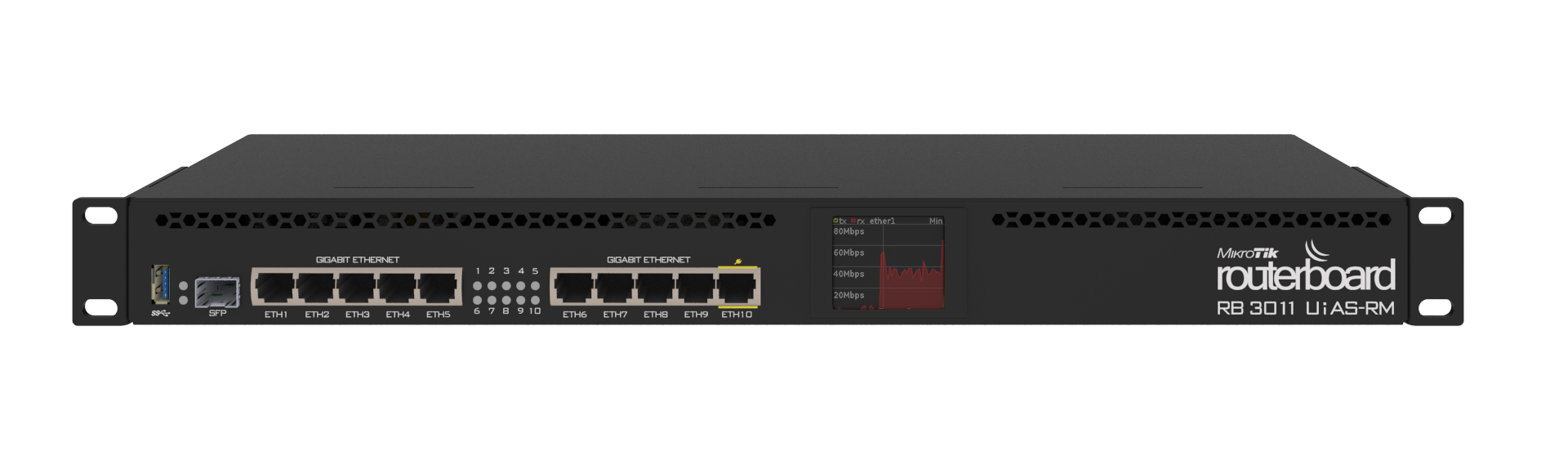

RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.

Specifications

Details
Product code	RB3011UiAS-RM
Architecture	ARM 32bit
CPU	IPQ-8064
CPU core count	2
CPU nominal frequency	1.4 GHz
Switch chip model	QCA8337
Dimensions	443 x 92 x 44 mm
RouterOS license	5
Operating System	RouterOS
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 70°C
IPsec hardware acceleration	Yes
Suggested price	$179.00

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	10-30 V
Max power consumption	30 W
Max power consumption without attachments	10 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-30 V

PoE-out

Details
PoE-out ports	Ether10
PoE out	Passive PoE
Max out per port output (input 18-30 V)	600 mA
Max total out (A)	600 mA

Ethernet

Details
10/100/1000 Ethernet ports	10

Fiber

Details
SFP ports	1

Peripherals

Details
Serial console port	RJ45
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

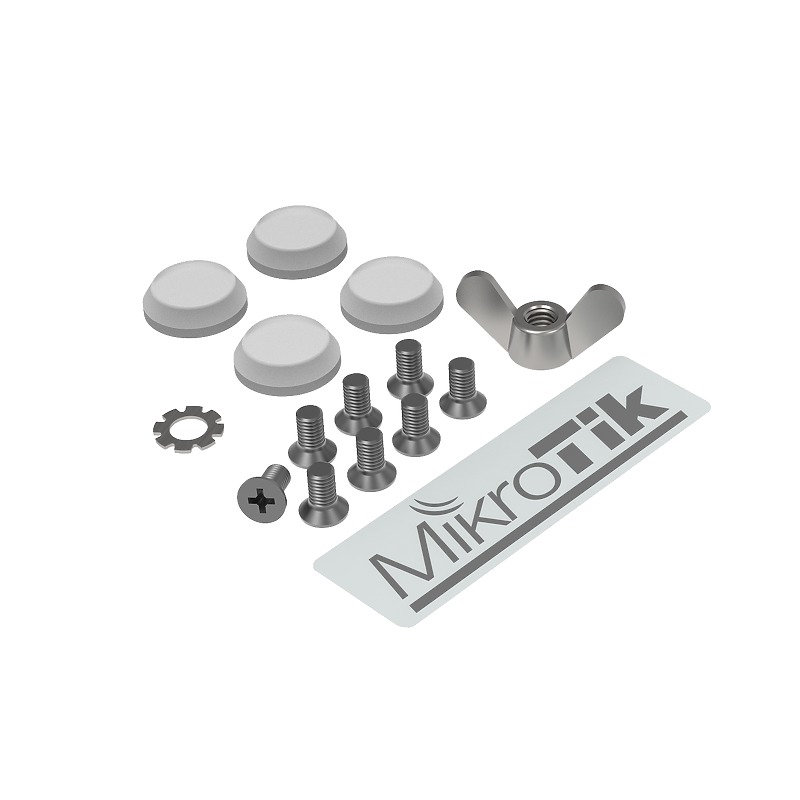

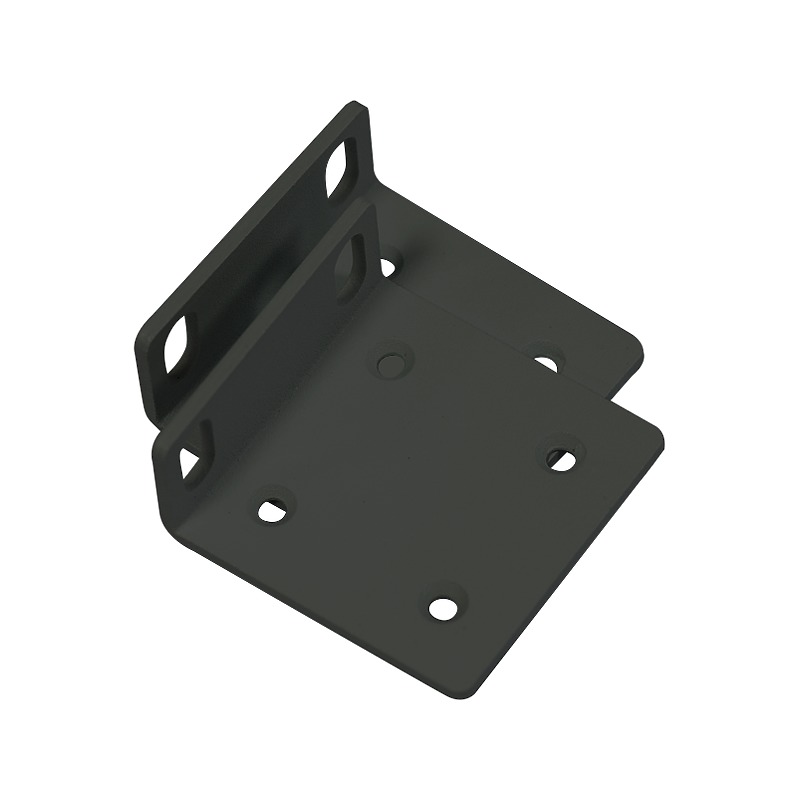

Included parts

BrochureOpen

Quick GuideOpen

User ManualOpen

RouterOS current releaseDownload

RouterBoot firmware Download

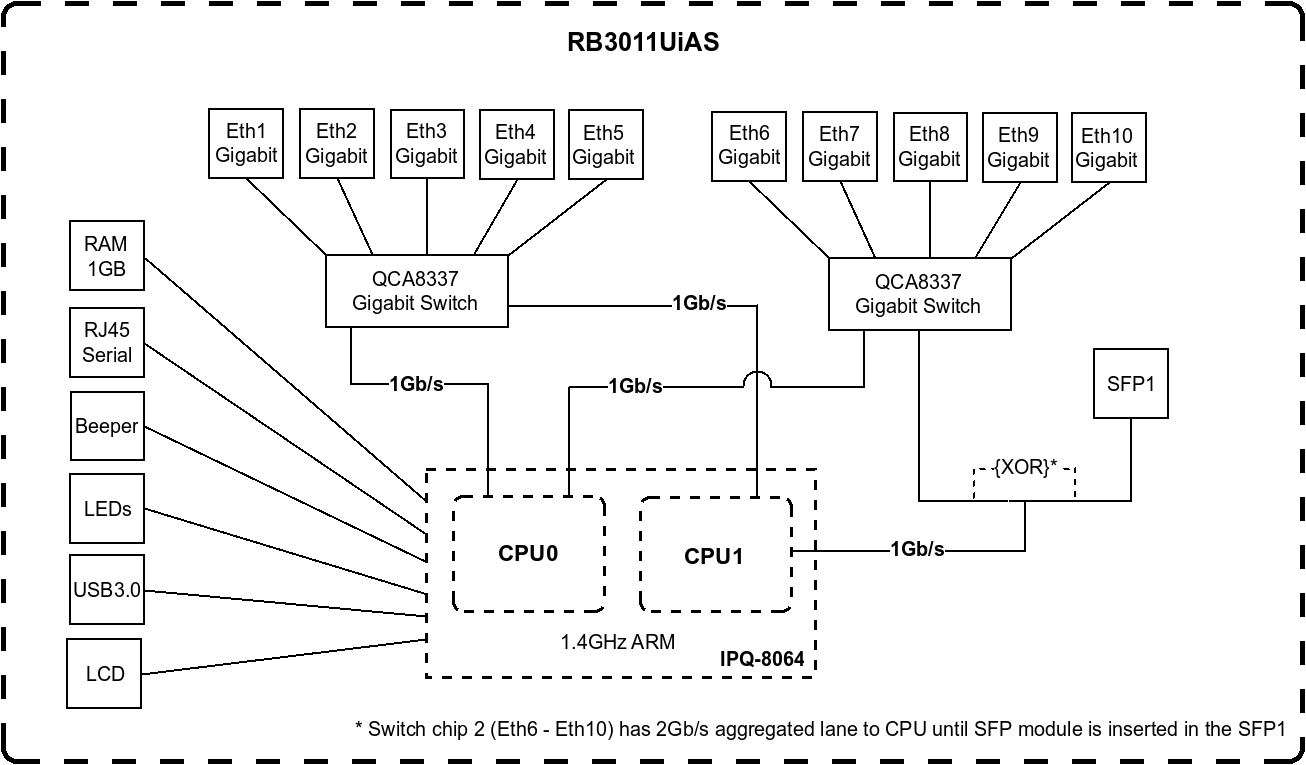

Block DiagramOpen

SFP compatibility listOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

High resolution images

Ethernet test results

RB3011UiAS-RM		IPQ-8064 All port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	325.0	3,946.8	939.8	3,849.4	1,530.2	783.5
Bridging	25 bridge filter rules	325.0	3,946.8	384.2	1,573.7	348.6	178.5
Routing	none (fast path)	325.0	3,946.8	939.8	3,849.4	1,437.6	736.1
Routing	25 simple queues	325.0	3,946.8	419.6	1,718.7	419.7	214.9
Routing	25 ip filter rules	202.0	2,453.1	204.1	836.0	188.4	96.5

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB3011UiAS-RM		IPQ-8064 IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	69.9	782.9	76.0	311.3	75.4	38.6
256 tunnels	AES-128-CBC + SHA1	70.5	789.6	72.2	295.7	72.4	37.1
256 tunnels	AES-128-CBC + SHA256	69.5	778.4	72.2	295.7	72.4	37.1
256 tunnels	AES-256-CBC + SHA1	69.5	778.4	72.0	294.9	72.4	37.1
256 tunnels	AES-256-CBC + SHA256	68.9	771.7	70.9	290.4	72.4	37.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
