LtAP LTE6 kitA compact heavy-duty LTE access point with a built-in GPS. Add extensive networking and tracking options to your vehicle without breaking the bank! 3 MiniSIM slots, multiple powering options, extra miniPCI-e slot, console port.
In a world where connectivity knows no boundaries, and the roughest terrain meets the need for reliable networks, affordable location tracking, and other extensive features, one device stands out: the LtAP LTE6 kit! It is a compact wireless access point with built-in GPS in our most durable weatherproof case ever.
Perfect for logistics and tracking
There are 3 MiniSIM slots – you can use them to set up automatic roaming, switching the mobile operators as you cross the border. The device features two internal LTE antennas, but you can use the U.FL connectors to add external antennas of your choice for even better coverage. The same principle goes for the GPS – you need an external antenna via SMA.

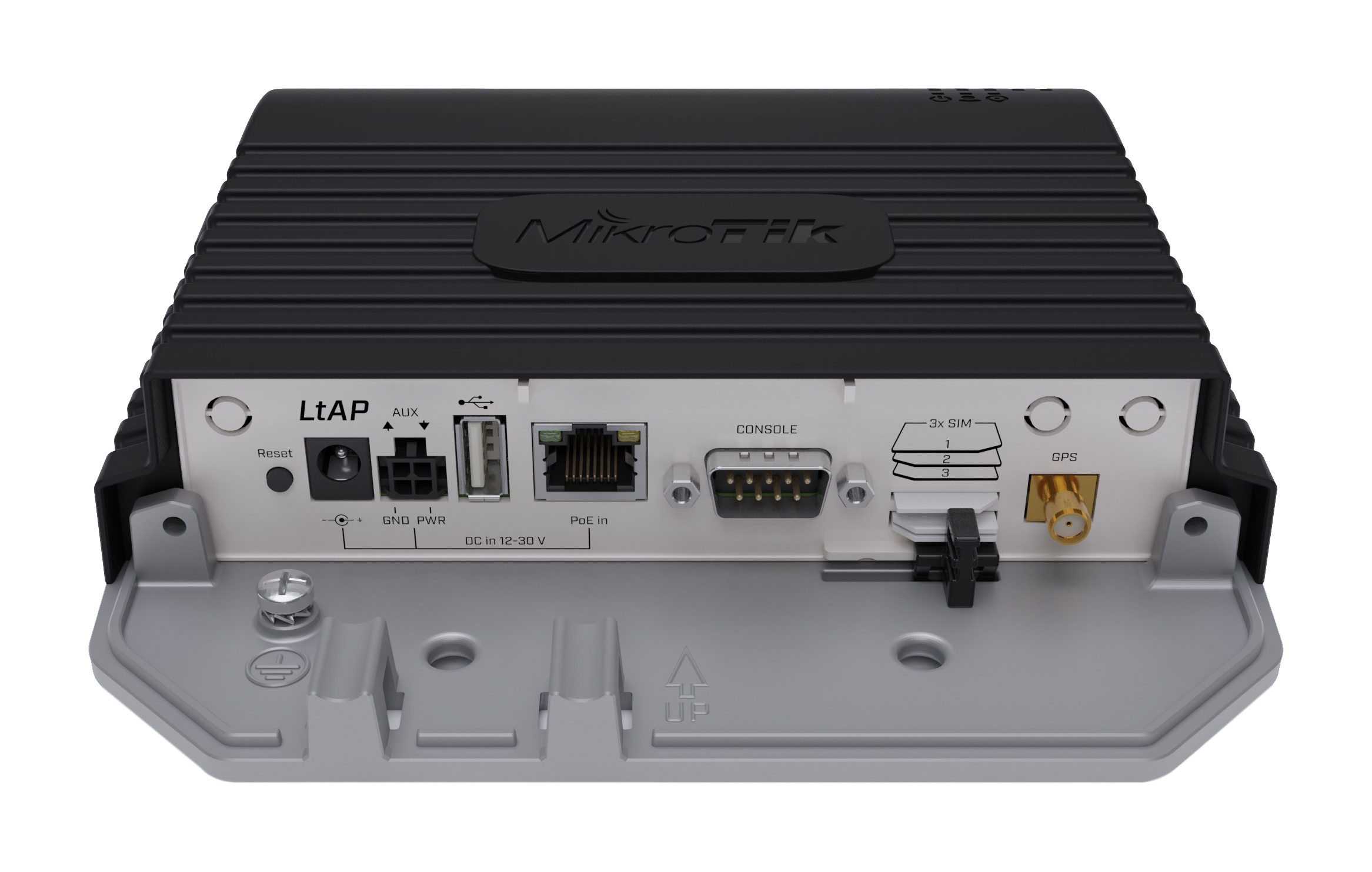

The power options are as flexible as it gets. You have the classic DC jack, passive PoE-in, and an automotive connector. We have even seen users powering the LtAP with a 20 000 mAh power bank throughout the day!
Customize – and achieve even more!

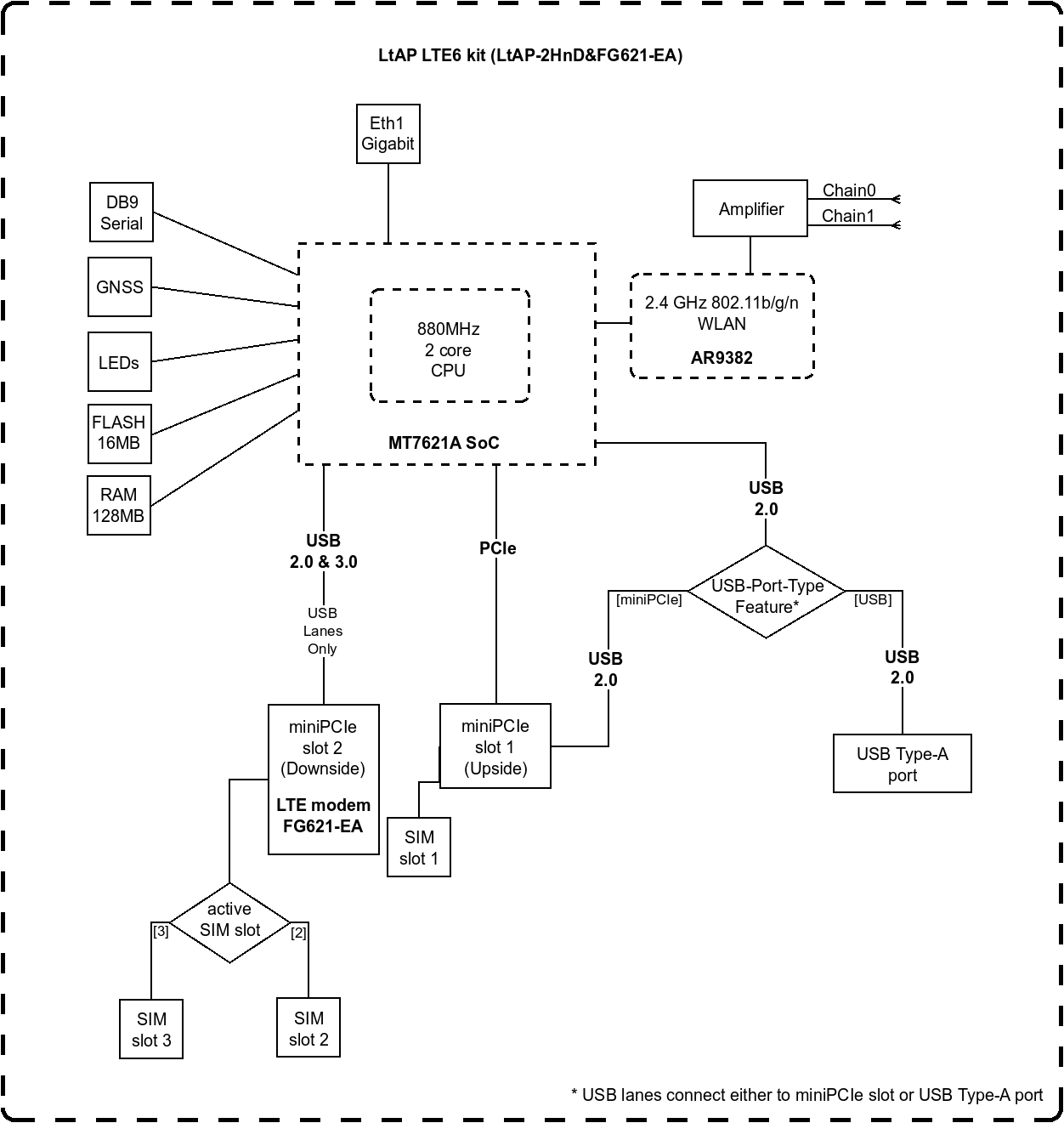

LtAP LTE6 kit comes with two miniPCI-e slots. One of these slots is reserved by the LTE modem, while the other one can be used as an expansion slot. You could add a 5 GHz interface, for example. Or a second LTE modem – for redundancy. It’s your call, adapt the LtAP to your needs!
Our latest Cat6 LTE modem – cut costs, not speed
This LtAP features a brand new Category 6 LTE modem – the same modem you’ve seen in our bestselling Chateau ax series. It supports a variety of popular LTE frequencies, like the B28 band. You can reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT6 allows devices to use two bands simultaneously. That is a huge advantage in areas with many LTE users. LtAP LTE6 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation.
All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
LtAP-2HnD&FG621-EAr2
MT7621A IPsec throughput
Mode
Configuration
1400 byte
512 byte
64 byte
kpps
Mbps
kpps
Mbps
kpps
Mbps
Single tunnel
AES-128-CBC + SHA1
41.9
469.3
42.3
173.3
41.5
21.2
256 tunnels
AES-128-CBC + SHA1
41.9
469.3
43.7
179
42.7
21.9
256 tunnels
AES-128-CBC + SHA256
42.2
472.6
44.4
181.9
42.7
21.9
256 tunnels
AES-256-CBC + SHA1
32
358.4
40
163.8
40.5
20.7
256 tunnels
AES-256-CBC + SHA256
32.1
359.5
39.7
162.6
40.5
20.7
All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
