    LHG 2 Dual chain 18dBi 2.4GHz CPE/Point-to-Point Integrated Antenna, 600Mhz CPU, 64MB RAM

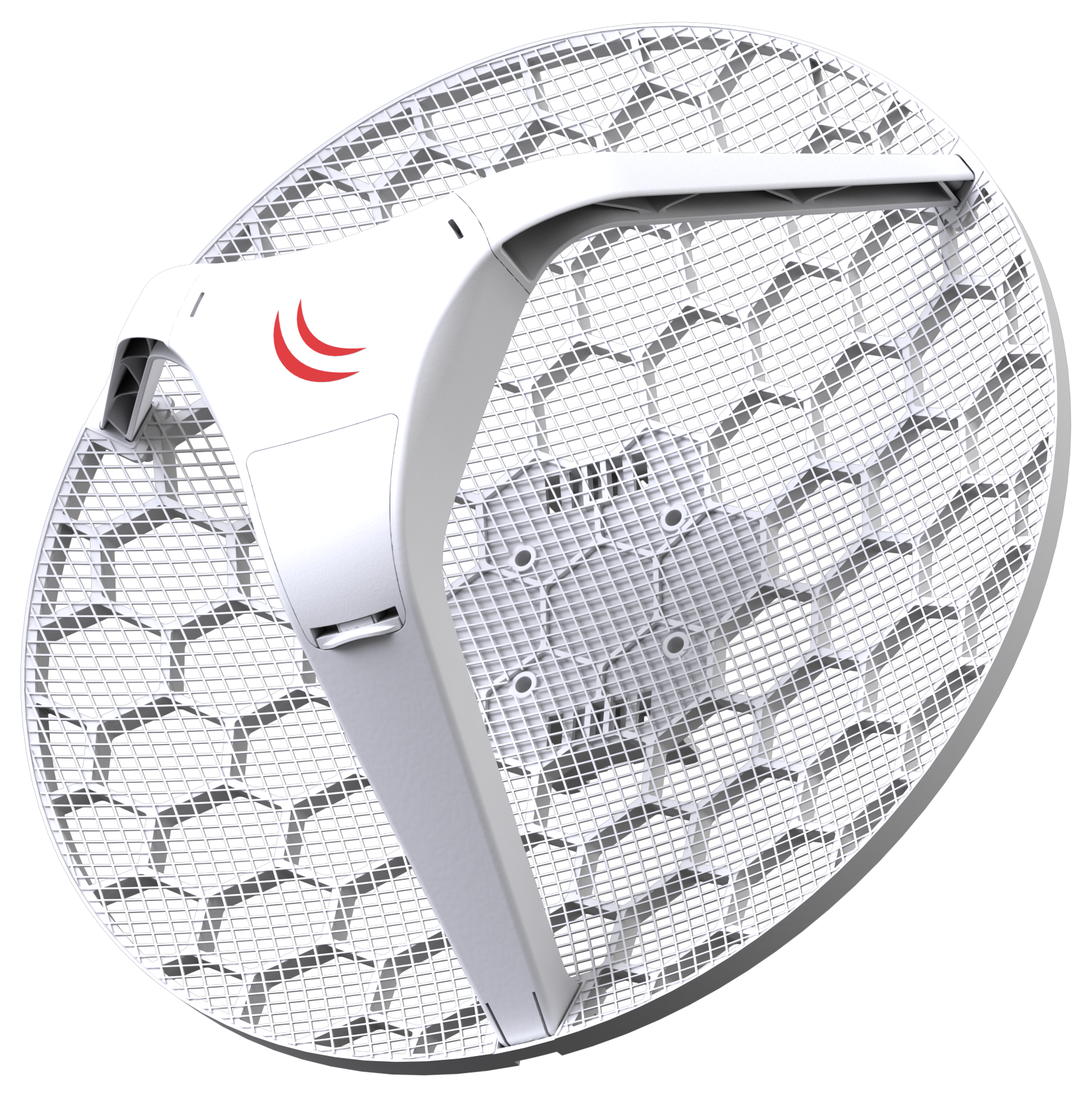

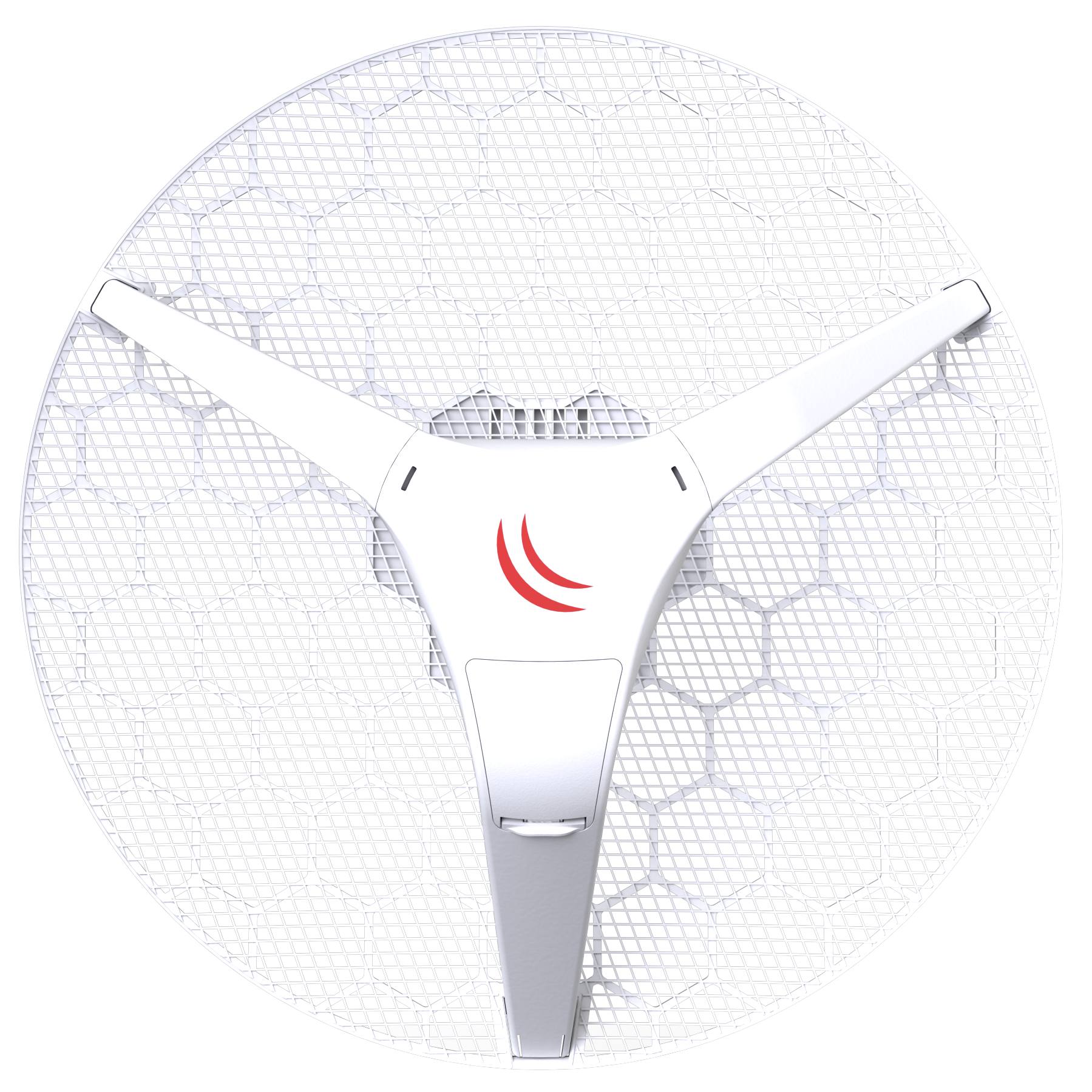

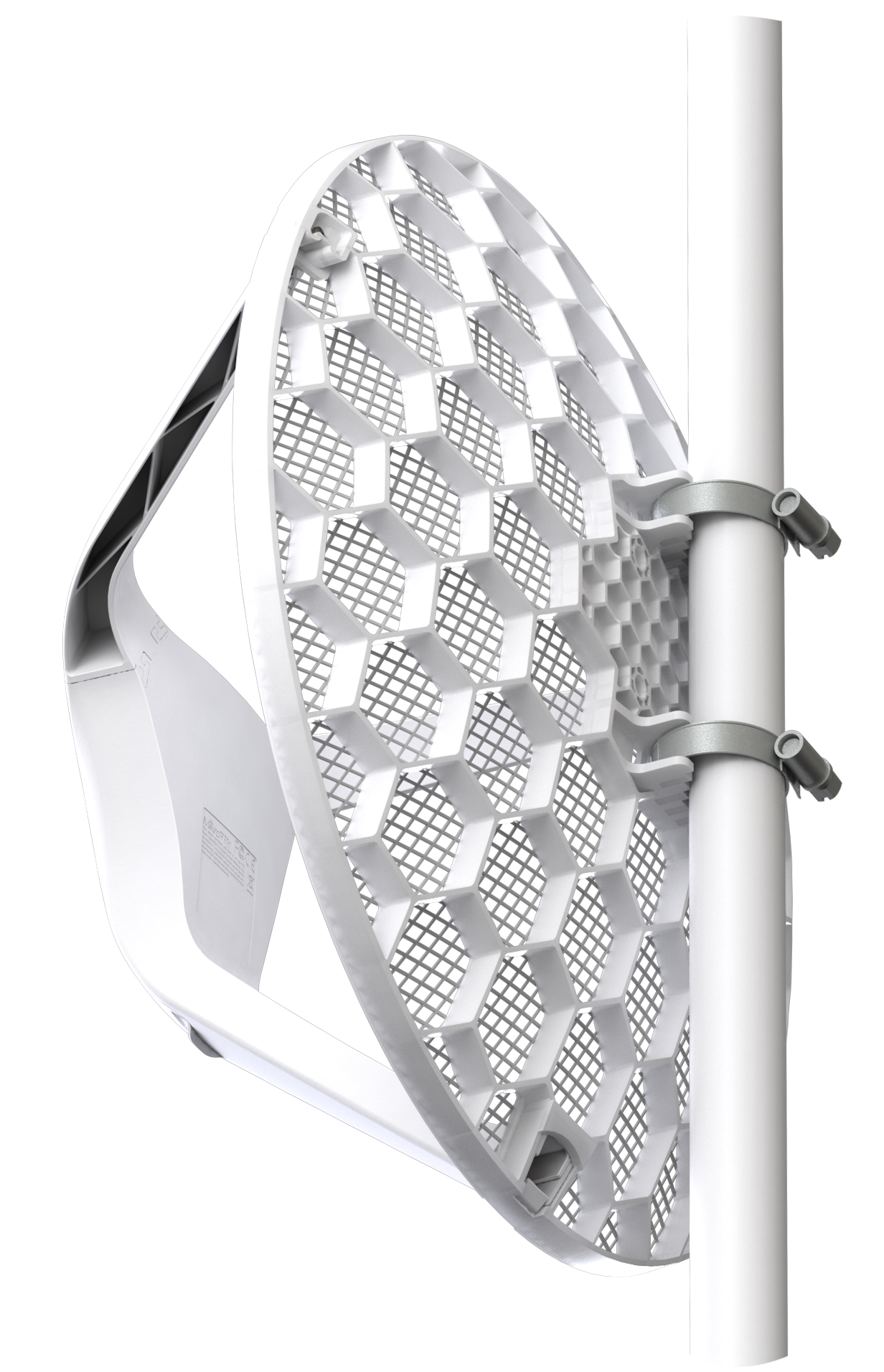

    The Light Head Grid (LHG) is a compact and light 2.4 GHz 802.11b/g/n wireless device with an integrated dual polarization 18 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

    The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

     Send purchase questions

    Specifications

    Details
    Product code RBLHG-2nD
    Architecture MIPSBE
    CPU QCA9533
    CPU core count 1
    CPU nominal frequency 650 MHz
    Dimensions Ø 391 x 222 mm
    RouterOS license 3
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $58.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 5 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 10-30 V

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 18
    Wireless 2.4 GHz chip model QCA9533
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 1

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s26-100
    11MBit/s26-93
    6MBit/s28-94
    54MBit/s24-78
    MCS028-94
    MCS723-75

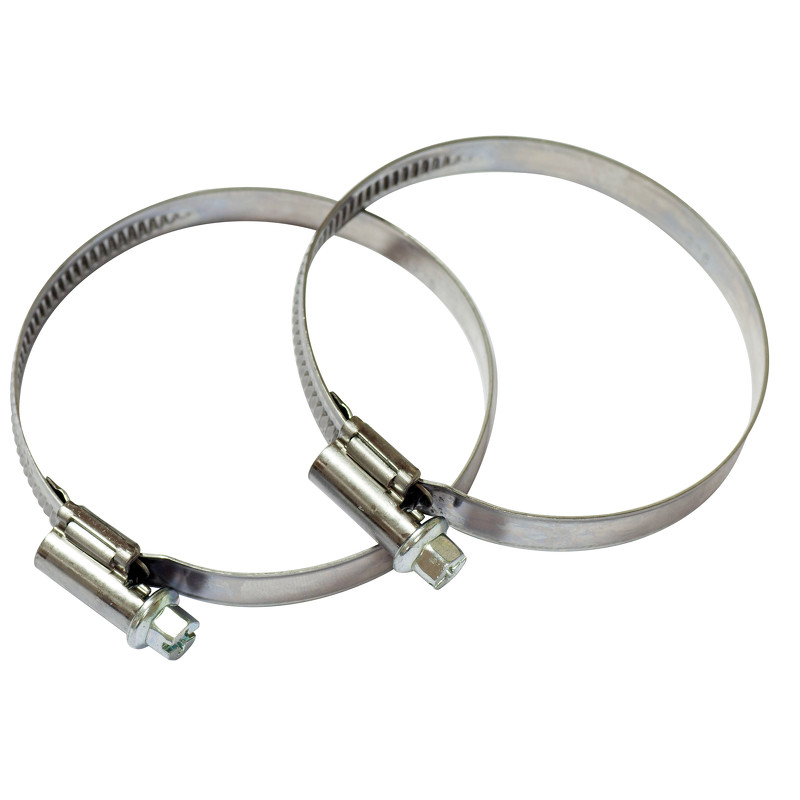

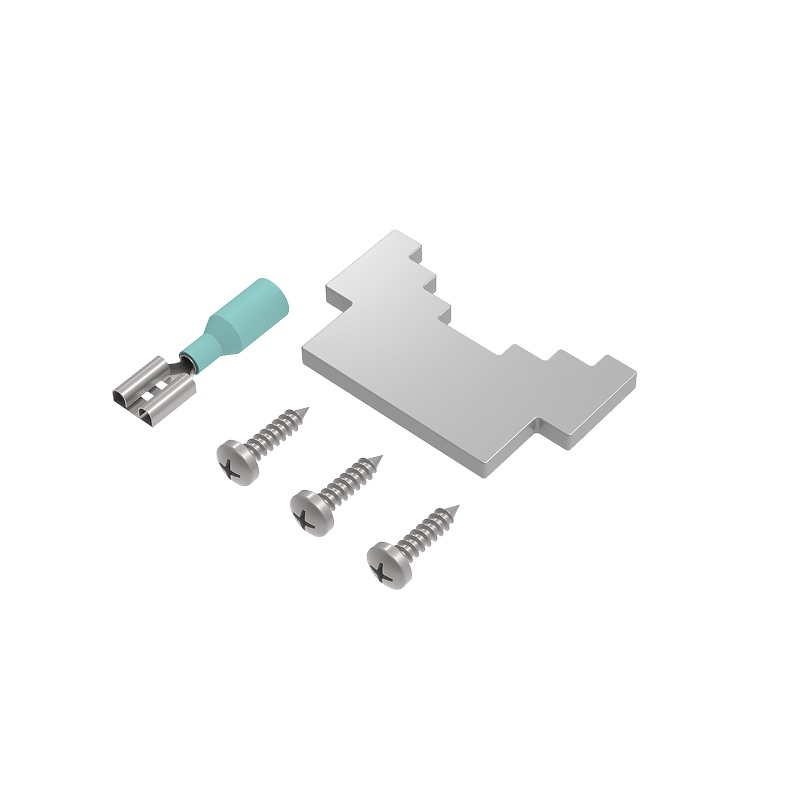

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release

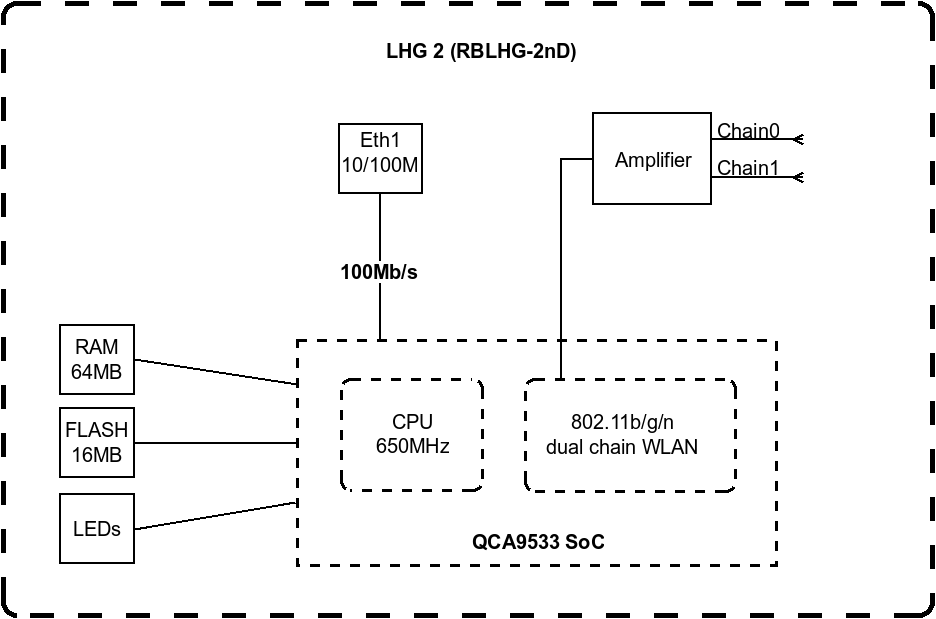

    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #

    Ethernet test results

    RBLHG-2nDQCA9533 100M one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3173.688.9
    Bridging25 bridge filter rules8.198.423.596.382.242.1
    Routingnone (fast path)8.198.423.596.3160.882.3
    Routing25 simple queues8.198.423.596.3118.760.8
    Routing25 ip filter rules8.198.423.596.353.927.6
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
