MikroTik Routers and Wireless - Products: CRS510-8XS-2XQ-IN

Remember our sensational 100 Gigabit switches – the CRS504 and CRS518? It’s time for another breathtaking addition to the MikroTik 100 Gigabit product family: the versatile CRS510-8XS-2XQ-IN!

This handy switch has two 100 Gigabit QSFP28 ports and eight 25 Gigabit SFP28 ports. This combination of ports guarantees a perfect fit in almost any setup or server room. Various direct attach cables, active optical cables, copper RJ45’s… CRS510 will keep everything connected! You’ll save time, money, and precious nerve cells with the backward compatibility. This unit supports all sorts of devices – 40 Gigabit, 25 Gigabit, 10 Gigabit, and even older Gigabit connections. And – speaking of nerve cells – we’ve kept the sysadmin’s emergency tool: the good old console port.

Another reason why we love the new CRS510 (and you will too!) is the performance. It can handle VLANs, ACL, MLAG, Jumbo frames, and so much more – even some L3 hardware offloading! The mighty Marvell Prestera switch chip dominates most tasks without blowing the power consumption up – only up to 27W (without attachments).

And when it comes to powering – CRS510 is a real joy to work with. It has dual hot-swap power supplies and three other powering options: PoE-in, DC jack, and a 2-pin terminal. No more unnecessary downtimes!

Specifications

Details
Product code	CRS510-8XS-2XQ-IN
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	98DX4310
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	128 MB
Storage size	32 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$999.00

Powering

Details
Number of AC inputs	2
AC input range	100-240
Number of DC inputs	3 (2-pin terminal, DC jack, PoE-IN)
DC jack input Voltage	36-57 V
2-pin terminal input Voltage	36-57 V
Frequency (Hz)	47-63
Max power consumption	45 W
Max power consumption without attachments	27 W
Cooling type	2 fans
PoE in	802.3 bt
PoE in input Voltage	42.5-57 V

Ethernet

Details
10/100 Ethernet ports	1

Fiber

Details
Number of 25G SFP28 ports	8
Number of 100G QSFP28 ports	2

Peripherals

Details
Serial console port	RJ45

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

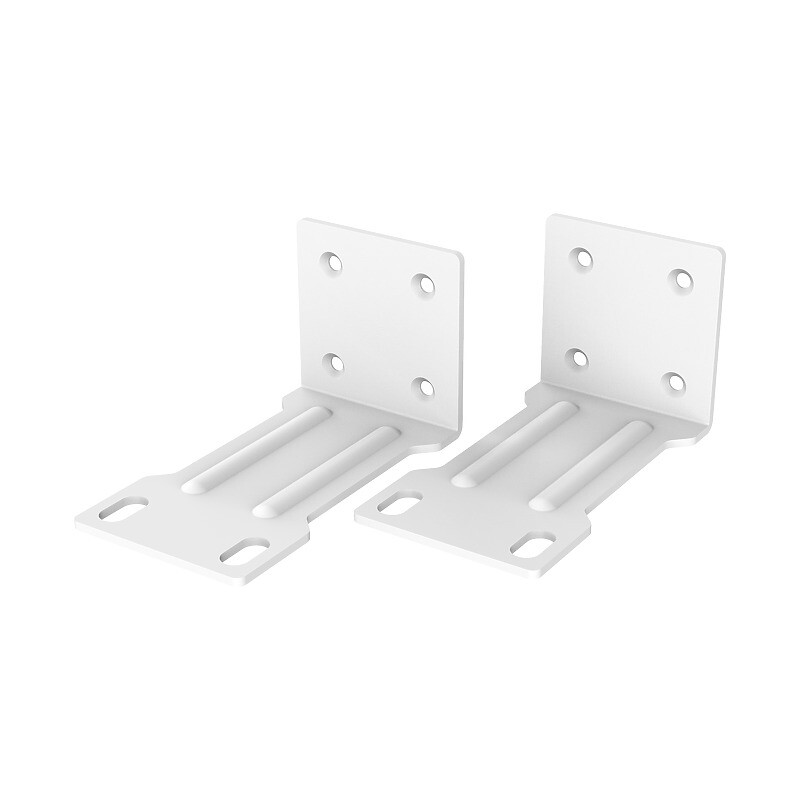

Included parts

BrochureOpen

Quick GuideOpen

User ManualOpen

RouterOS current releaseDownload

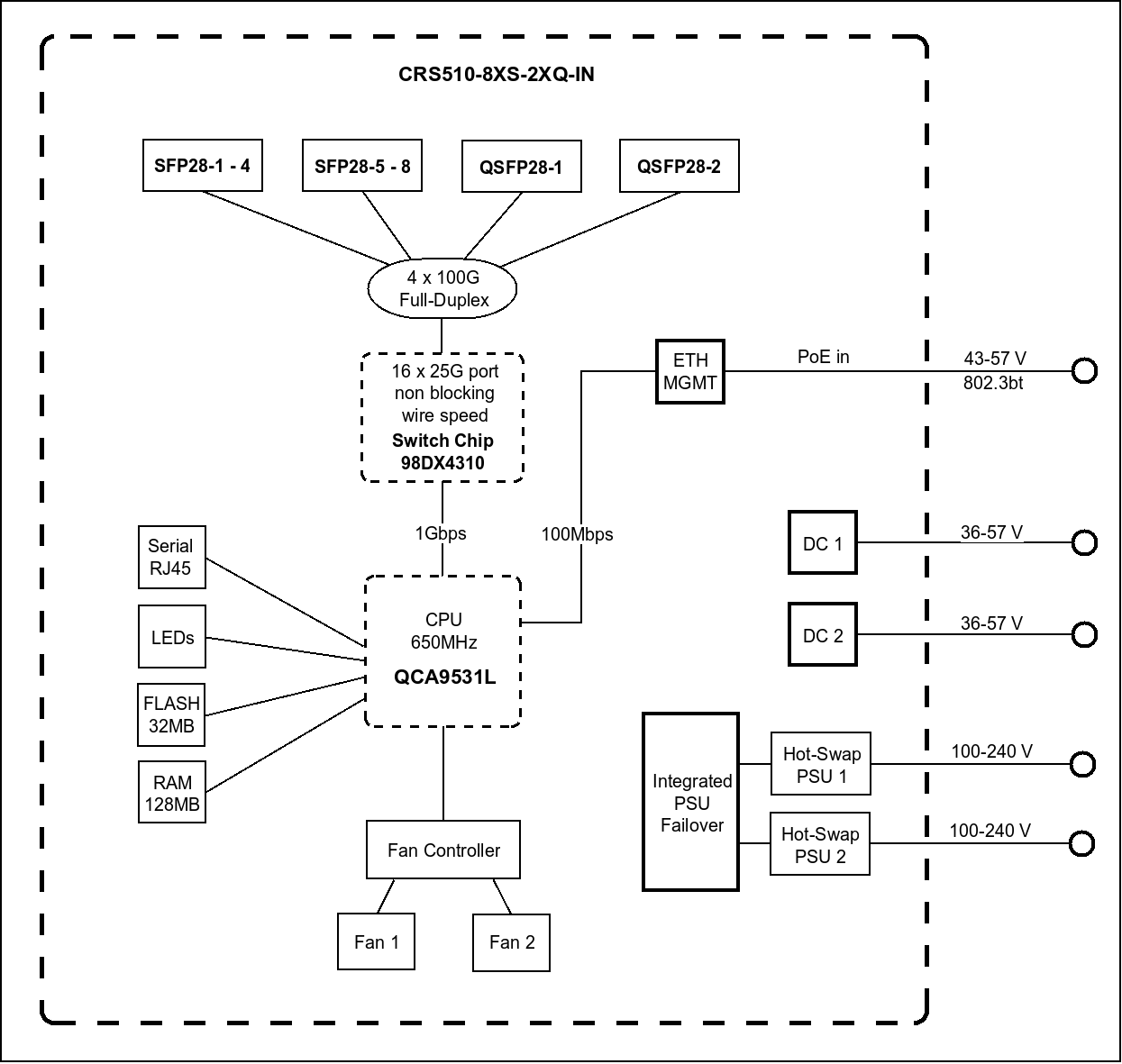

Block DiagramOpen

SFP compatibility listOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

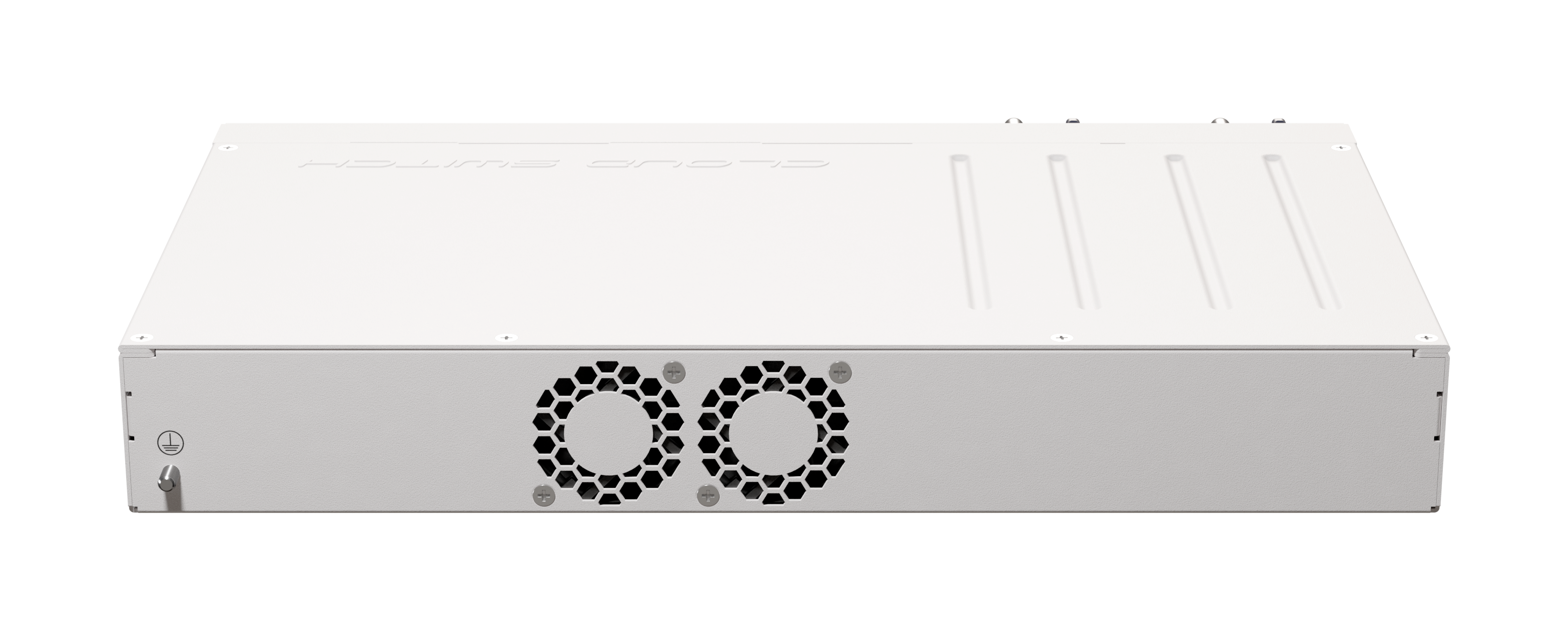

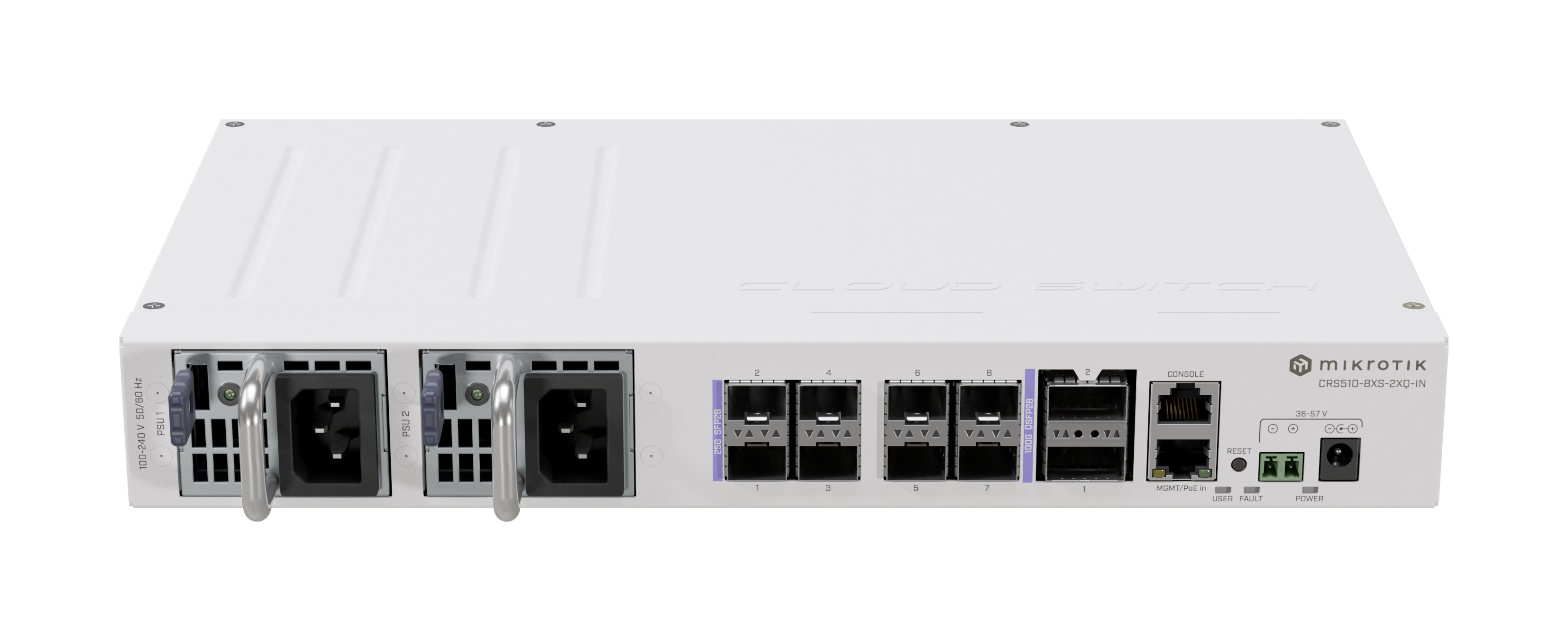

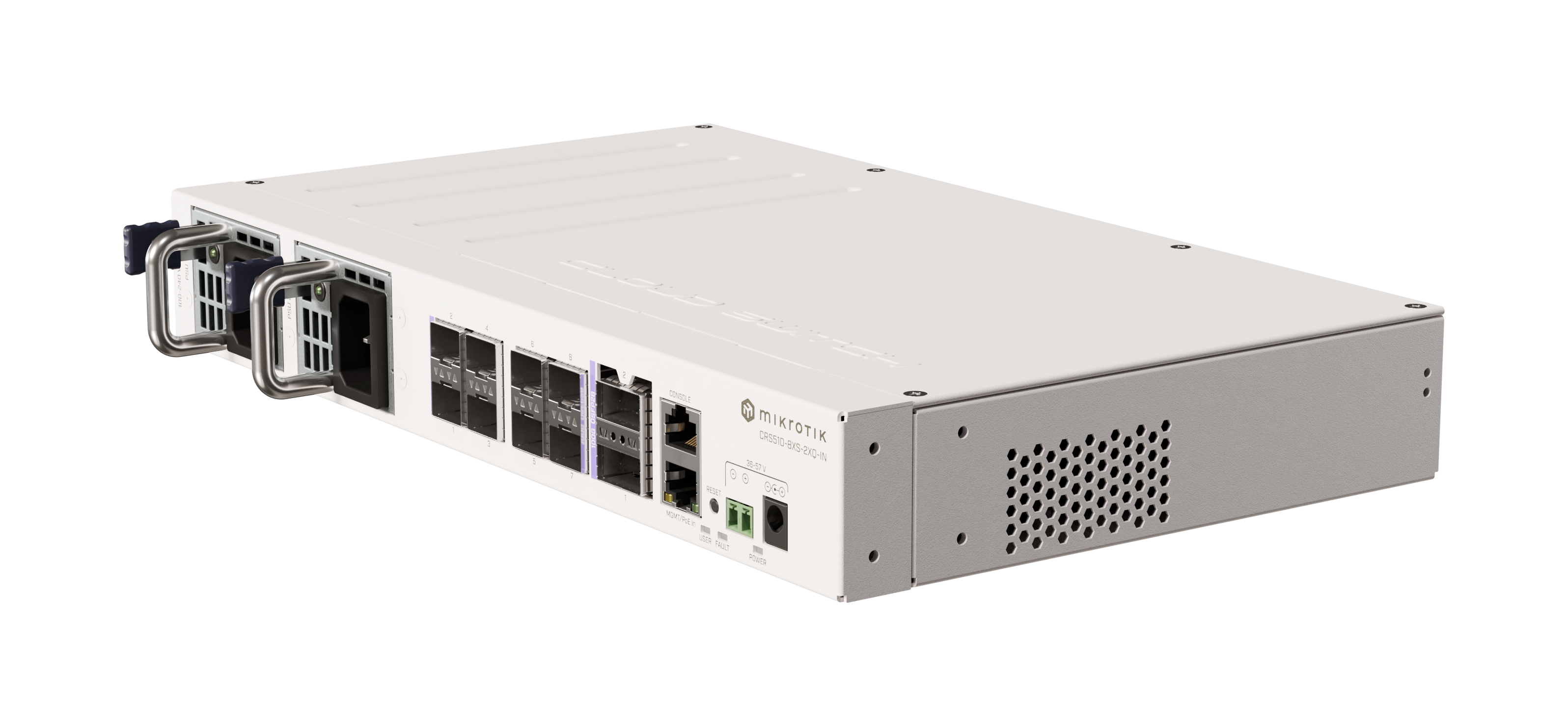

High resolution images

Switching results

CRS510-8XS-2XQ-IN
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	32,517.9	394,897.1	94,008.5	385,058.6	595,386.9	304,838.1
Switching	Non blocking Layer 2 capacity	32,517.9	789,794.3	94,008.5	770,117.3	595,386.9	609,676.2
Switching	Non blocking Layer 1 throughput	32,517.9	400,100.0	94,008.5	400,100.0	595,386.9	400,100.0
Switching	Non blocking Layer 1 capacity	32,517.9	800,200.0	94,008.5	800,200.0	595,386.9	800,200.0

Ethernet test results

CRS510-8XS-2XQ-IN		QCA9531 all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	37,4	454.2	82,8	339.1	162,5	83.2
Bridging	25 bridge filter rules	33,8	410.5	47,8	195.8	75,6	38.7
Routing	none (fast path)	37,2	451.8	73,3	300.2	144,9	74.2
Routing	25 simple queues	36,4	442.0	52,4	214.6	54,4	27.9
Routing	25 ip filter rules	33,8	410.5	41,4	169.6	41,7	21.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
