    CRS328-4C-20S-4S+RM Smart Switch, 20 x SFP cages, 4 x SFP+ cages, 4 x Combo ports (Gigabit Ethernet or SFP), 800MHz CPU, 512MB RAM, 1U rackmount case, Dual Power Supplies, RouterOS L5 or SwitchOS (Dual Boot)

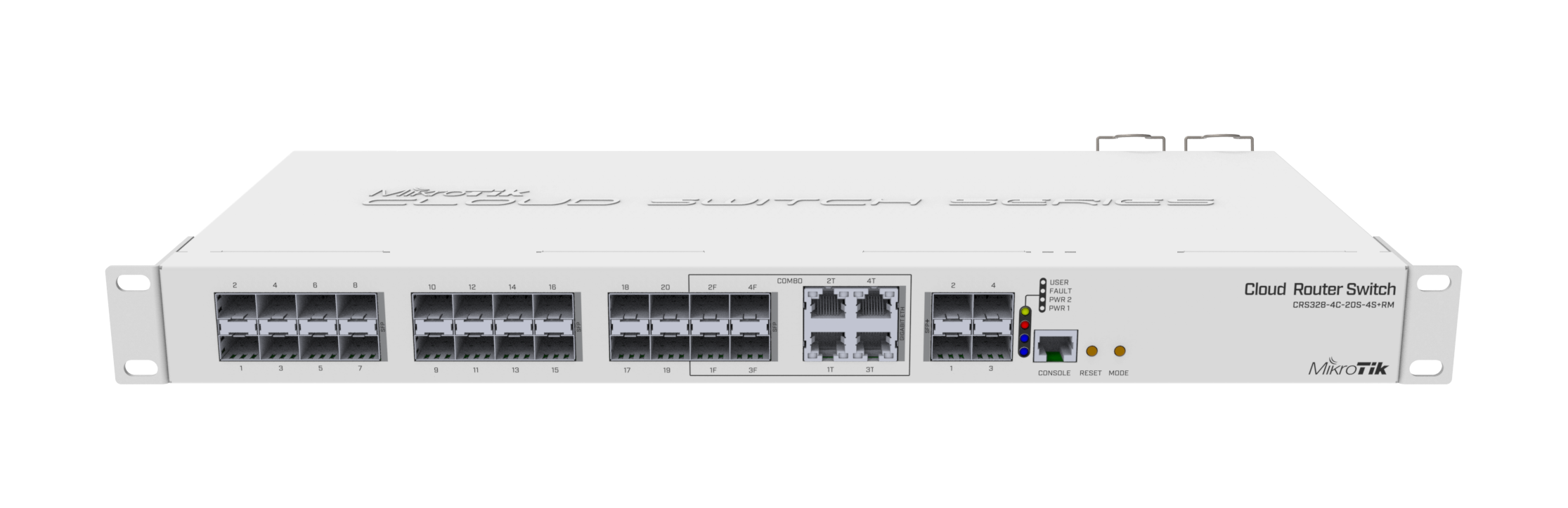

    The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.

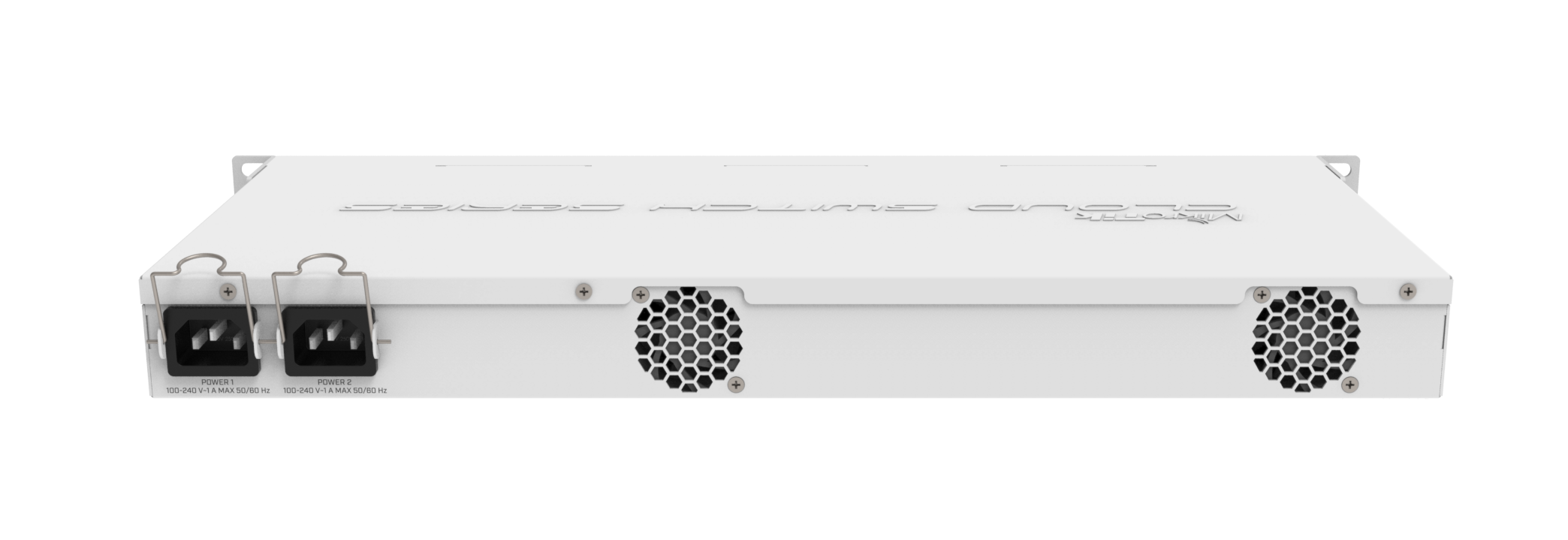

    The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.

    The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.

     Send purchase questions

    Specifications

    Details
    Product code CRS328-4C-20S-4S+RM
    Architecture ARM 32bit
    CPU 98DX3236
    CPU core count 1
    CPU nominal frequency 800 MHz
    Switch chip model 98DX3236
    Dimensions 443 x 194 x 44 mm
    RouterOS license 5
    Operating System RouterOS / SwitchOS
    Size of RAM 512 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -20°C to 60°C
    Suggested price $449.00

    Powering

    Details
    Number of AC inputs 2
    AC input range 100-240
    Max power consumption 43 W
    Cooling type 2 fans

    Ethernet

    Details
    Ethernet Combo ports 4

    Fiber

    Details
    SFP ports 20
    SFP+ ports 4

    Peripherals

    Details
    Serial console port RJ45

    Other

    Details
    CPU temperature monitor Yes
    Voltage Monitor Yes
    Mode button Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS

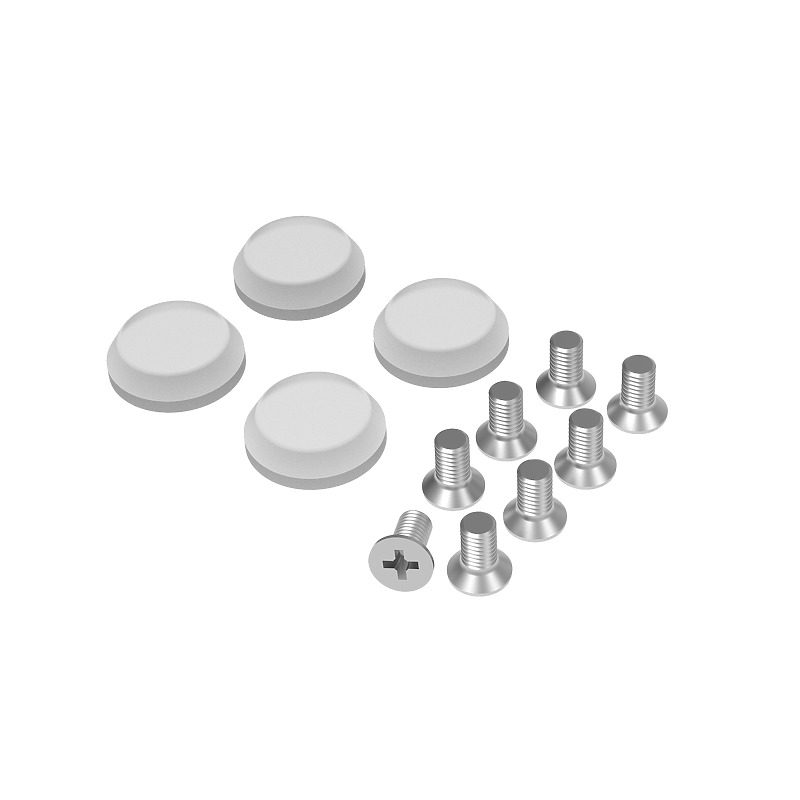

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    DimensionsOpen

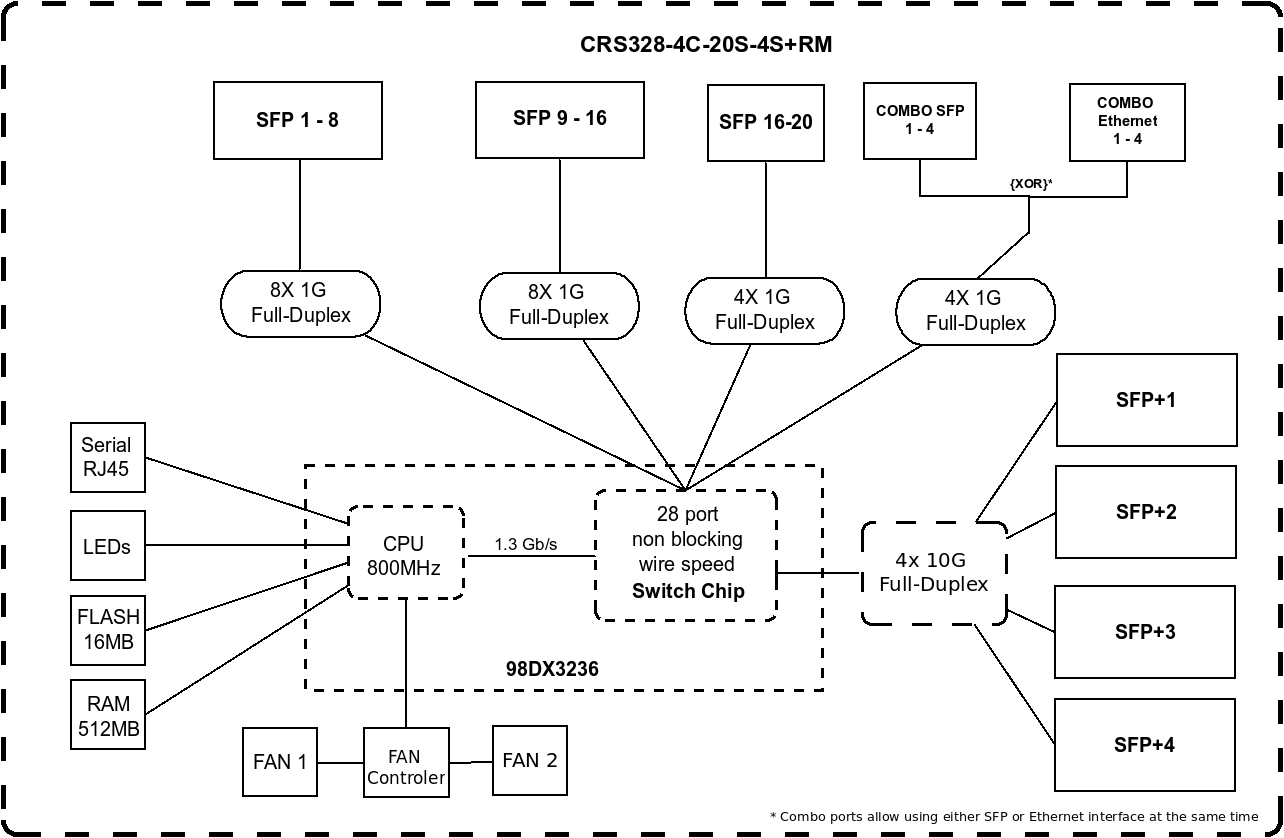

    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    SwOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #

    Switching results

    CRS328-4C-20S-4S+RM
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 5,201.6 63,167.8 15,037.6 61,594.0 95,238.1 48,761.9
    Switching Non blocking Layer 2 capacity 5,201.6 126,335.5 15,037.6 123,188.0 95,238.1 97,523.8
    Switching Non blocking Layer 1 throughput 5,201.6 64,000.0 15,037.6 64,000.0 95,238.1 64,000.0
    Switching Non blocking Layer 1 capacity 5,201.6 128,000.0 15,037.6 128,000.0 95,238.1 128,000.0

    Ethernet test results

    CRS328-4C-20S-4S+RM98DX3236 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)104,31266.6273,51120.3449229.9
    Bridging25 bridge filter rules1041263.0104,6428.4104,553.5
    Routingnone (fast path)104,31266.6273,91121.9343,5175.9
    Routing25 simple queues104,31266.6136,9560.7137,470.3
    Routing25 ip filter rules64,8786.965,9269.965,833.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
