Are you tired of wired sensor limitations? Wouldn’t it be nice if legacy devices - like electricity meters - could send their data over the mobile network, like our phones do? With CME Gateway you can achieve just that – and more!

It has two Ethernet ports, an on-board CPU, some RAM, and the crown jewel: a powerful built-in CAT-M narrow-band LTE modem. For extremely efficient, low-cost, low-bandwidth mobile internet connectivity. Sure, the narrowband won’t be able to stream YouTube videos, but it serves a different purpose: it offers better network coverage and transmits data via the most affordable data plans in the world.

With the IP66 water resistance rating, the sturdy unit can survive a variety of harsh environments and setups: damp attics, rainy forests, farming equipment and so on. It has PoE-in, PoE-out, and a 2-pin DC terminal for handy powering. And to make management even easier - we’ve added a simple single-chain 2.4 GHz wireless - so you can use the MikroTik smartphone app to configure everything.

Also, a fun bonus: the board supports GPS, so if you know your way around RouterOS scripting, you can try collecting weekly, daily or even hourly location data as well!

• Specifications
• Support & Downloads
• Gallery
• Test results

Specifications

Details
Product code	CME22-2n-BG77
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	QCA9531
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$89.00

Powering

Details
Number of DC inputs	2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage	12-57 V
Max power consumption	31 W
Max power consumption without attachments	6 W
PoE in	802.3af/at
PoE in input Voltage	18-57 V

PoE-out

Details
PoE-out ports	Ether2
PoE out	Passive PoE up to 57V
Max out per port output (input 18-30 V)	600 mA
Max out per port output (input 30-57 V)	450 mA
Max total out (A)	0.6 A

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	150 Mbit/s
Wireless 2.4 GHz number of chains	1
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports	2

Peripherals

Details
Number of SIM slots	1 Modem (Nano SIM)

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	66

Included parts

•
  48 V 0.95 A power adapter
•
  Gigabit PoE injector
•
  Metal rings (two)

BrochureOpen

User ManualOpen

RouterOS current release

Download

• routeros-7.13.5-mipsbe.npk
• wireless-7.13.5-mipsbe.npk
• iot-7.13.5-mipsbe.npk

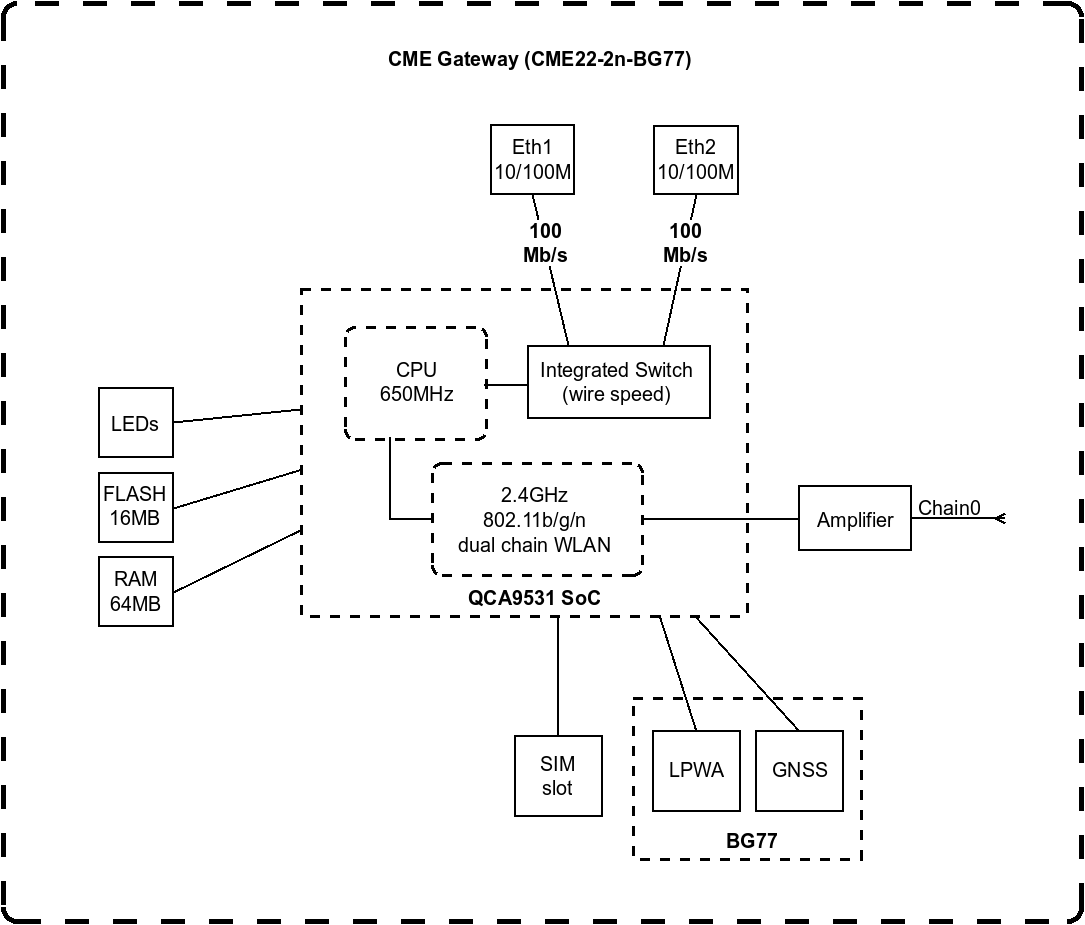

Block DiagramOpen

Safety and regulatory informationOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

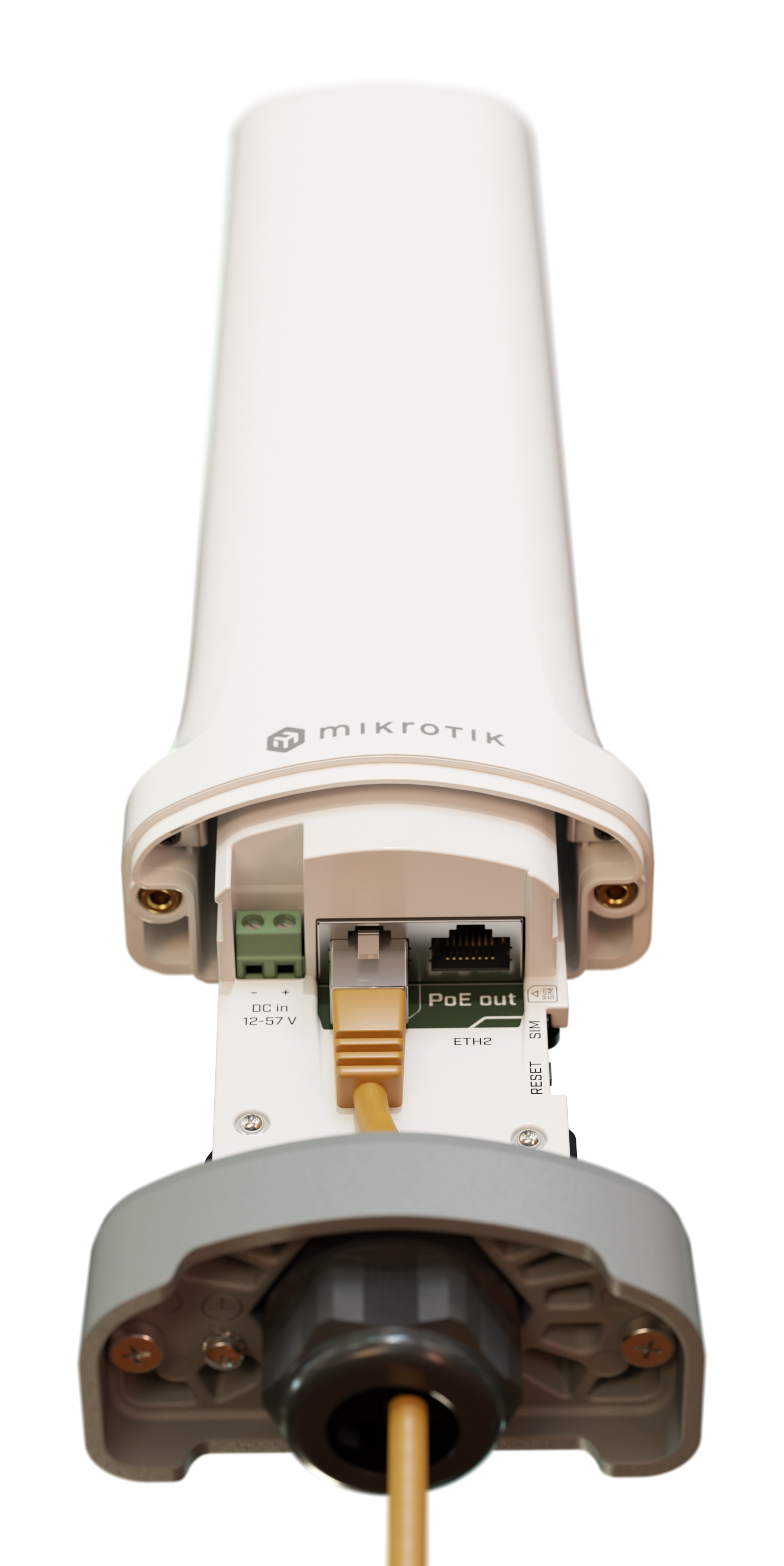

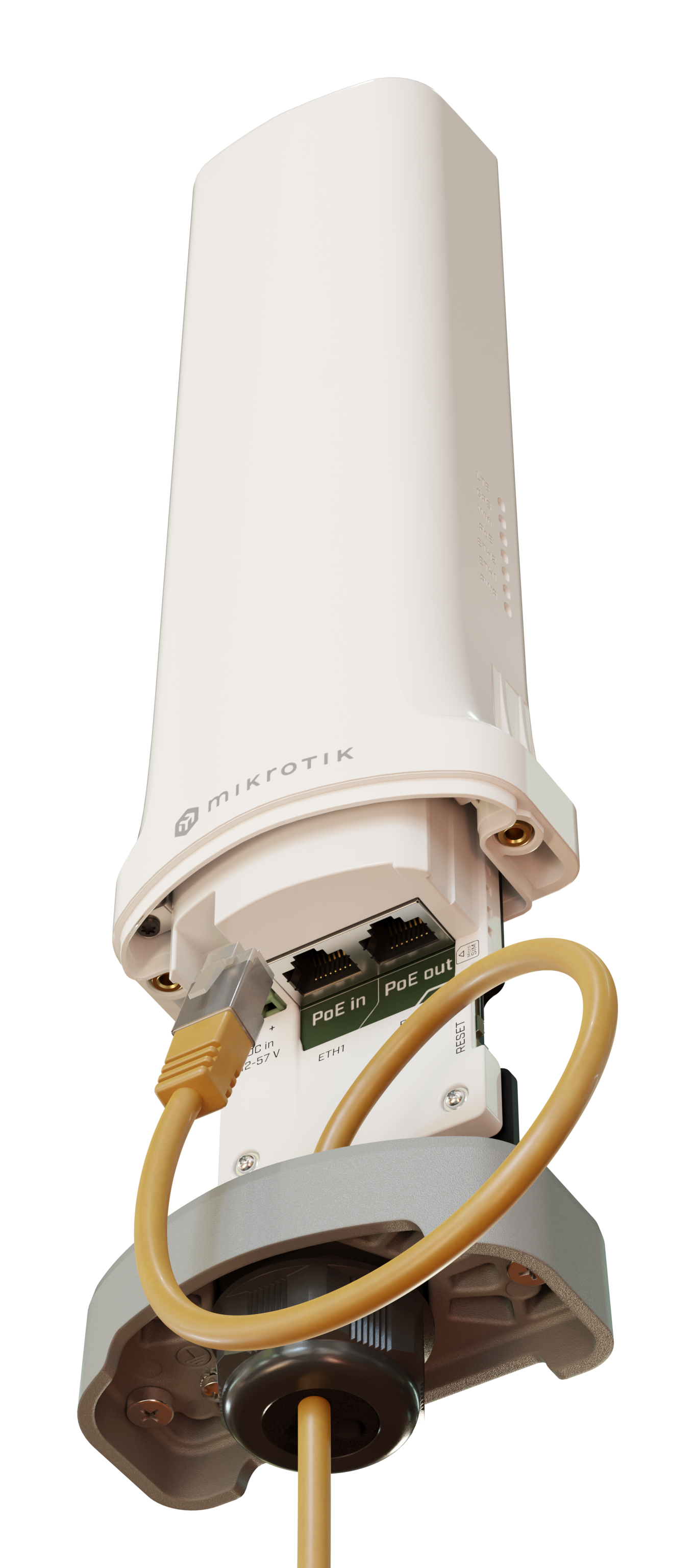

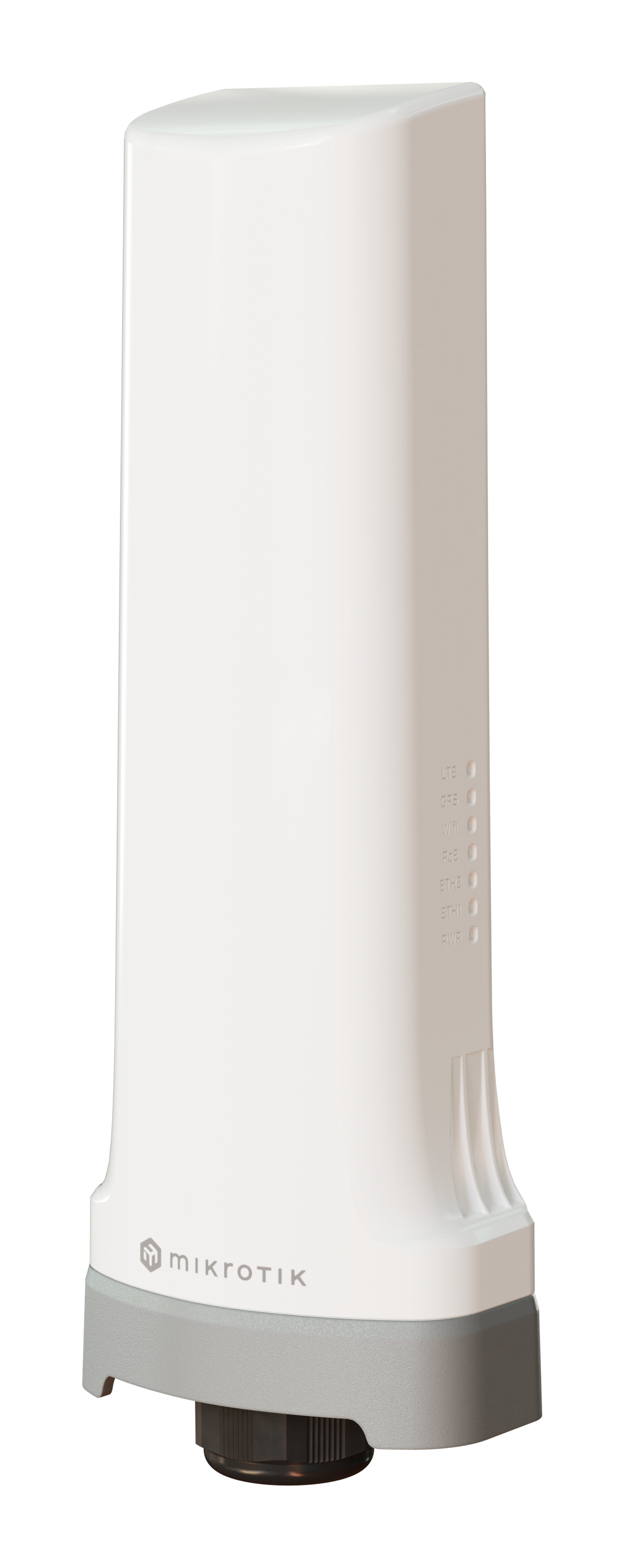

High resolution images

Ethernet test results

CME22-2n-BG77		QCA9531 100M two port test
Mode	Configuration	1518 byte		512 byte		64 byte
		kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	16.3	197.9	47.0	192.5	297.6	152.4
Bridging	25 bridge filter rules	16.3	197.9	47.0	192.5	80.4	41.2
Routing	none (fast path)	16.3	197.9	47.0	192.5	233.1	119.3
Routing	25 simple queues	16.3	197.9	47.0	192.5	131.4	67.3
Routing	25 ip filter rules	16.3	197.9	47.0	192.5	49.1	25.1

1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
